Simply put, the Impact rangefinder’s combination of excellent and reliable performance at a super economical price means you no longer have an excuse to head afield without a laser rangefinder. This lightweight, no-frills rangefinder is easy-to-use and features angle compensation for treestand hunters and casual range goers wanting precise horizontal distance to the target. The Impact joins all other Vortex rangefinders in the unique fact they are fully covered for life by the legendary VIP Warranty—including electronics.
Runs on a single, long-lasting, easy-to-find, CR2 battery.
| Magnification | 6x |
|---|---|
| Range Reflective (yards) | 850 yards |
| Range Deer (yards) | 400 yds |
| Accuracy | + / - 1 yards @ 100 yards |
| Max Angle Reading | + / - 60 degrees |
| Linear Field of View | 341 feet/1000yards |
| Angular Field of View | 6.5 degrees |
| Eye Relief | 15mm |
| Length | 3.77 inches |
| Width | 2.95 inches |
| Parts Diagram (PDF) | Download |
| Fully Multi-Coated | Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Rugged Design | Built to handle tough situations. Compact and lightweight. |
| Diopter | Adjusts for differences in a user's eyes. Located on right eyepiece |
| Intuitive Display | Easy-to-use menu with a simple, clean display. |
| HCD | Horizontal Component Distance (HCD) mode for angle compensated ranging. |
| LOS | Line of Sight (LOS) mode displays actual line of sight range. |
| Scan | This feature displays continual distance readings when panning across a landscape or tracking a moving animal. |
| Ranging Format | Range in yards or meters. |

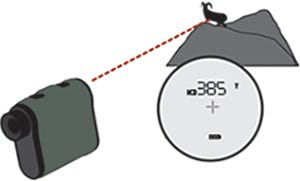

HCD CORRECTED SHOOT-TO RANGE
The Impact 850 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
| Magnification | 6x |
|---|---|
| Range Reflective (yards) | 850 yards |
| Range Deer (yards) | 400 yds |
| Accuracy | + / - 1 yards @ 100 yards |
| Max Angle Reading | + / - 60 degrees |
| Linear Field of View | 341 feet/1000yards |
| Angular Field of View | 6.5 degrees |
| Eye Relief | 15mm |
| Length | 3.77 inches |
| Width | 2.95 inches |
| Parts Diagram (PDF) | https://stage-weaponholder.s3.us-east-2.amazonaws.com/product_manuals/Optics/Riflescopes/VTX_LRF100_LRF101_RF_C_XVIEW_V2.pdf |
