DIAMONDBACK®

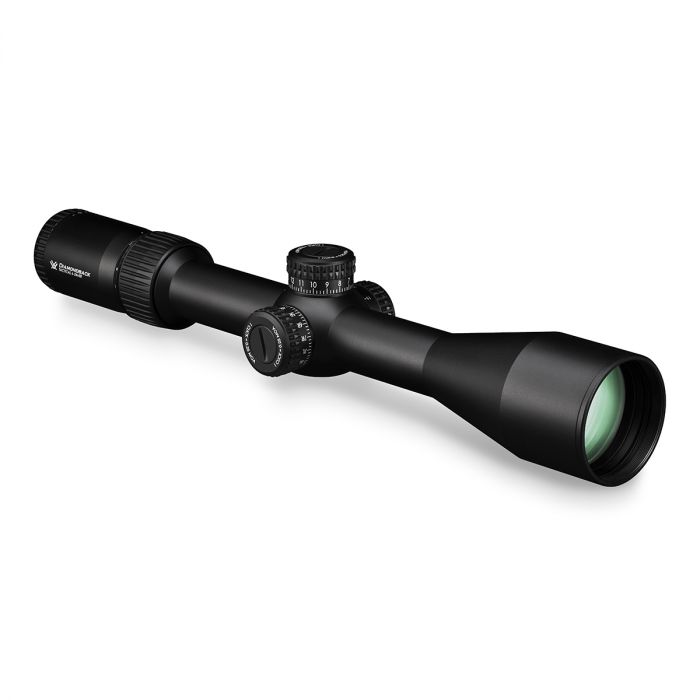

Tactical 6-24x50 FFP

EBR-2C (MOA) Reticle | 30mm Tube

EBR-2C (MRAD) Reticle | 30mm Tube

As low as $449.99 Regular Price $649.99

In stock

SKU: Tactical 6-24x50 FFP

UPC: Tactical 6-24x50 FFP

SKU: DBK-10028

UPC: 875874009615

SKU: DBK-10029

UPC: 875874009622

Only %1 left

Overview
Videos
Features
Reticle
Accessories

Overview

The Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun. Opt for one of the first focal plane models on a sweet shooting rifle and you've got yourself a perfectly capable competition rig without breaking the bank.

Diamondback Tactical 6-24x50 FFP Dimensions (in inches)

Lengths						Heights
L1	L2	L3	L4	L5	L6	H1	H2
14.28	2.30	2.70	6.56	3.98	3.77	2.25	1.73

Included in the Box

Lens Covers
Lens Cloth
Sunshade

More Information
Objective Lens Diameter	50 mm
Magnification	6-24x
Tube Size	30 mm

More Information
Manufacturer	Vortex Optics
Objective Lens Diameter	50 mm
Magnification	6-24x
Tube Size	30 mm
Eye Relief	3.9 inches
Field of View	18-4.5 ft/100 yds
Turret Style	Tall Exposed Tactical
Adjustment Graduation	1/4 MOA
Travel Per Rotation	15 MOA
Max Elevation Adjustment	65 MOA
Max Windage Adjustment	65 MOA
Parallax Setting	10 yards to Infinity
Length	14.28 inches
Weight	24.6 oz
Product Manual (PDF)	Download
Reticle Manual (PDF)	Download
Parts Diagram (PDF)	Download

More Information
Manufacturer	Vortex Optics
Objective Lens Diameter	50 mm
Magnification	6-24x
Tube Size	30 mm
Eye Relief	3.9 inches
Field of View	18-4.5 ft/100yds
Turret Style	Tall Exposed Tactical
Adjustment Graduation	.1 MRAD
Travel Per Rotation	6 MRAD
Max Elevation Adjustment	19 MRAD
Max Windage Adjustment	19 MRAD
Parallax Setting	10 yards to Infinity
Length	14.28 inches
Weight	24.6 oz
Product Manual (PDF)	Download
Reticle Manual (PDF)	Download
Parts Diagram (PDF)	Download

Long Range Ballistics Calculator

VIDEOS

DIAMONDBACK TACTICAL FFP RIFLESCOPE

FEATURES

XD™ OPTICAL SYSTEM

Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration and guarantees bright, high-contrast images.

FULLY MULTI COATED LENSES

Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.

Nitrogen Gas Purged

Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. Designed to withstand a wide range of temperatures

Waterproof

Designed to withstand harsh weather conditions.

Fogproof

Designed to withstand a wide range of temperatures

VIP Warranty

VIP stands for a Very Important Promise to you, our customer. We will repair or replace your Vortex® product in the event it becomes damaged or defective—at no charge to you.

XD™ Lens Elements	Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated	Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle	Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle	Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

Tube Size	30 mm diameter provides maximized internal adjustment and strength.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof	Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof	Rugged construction withstands recoil and impact.
Hard Anodized Finish	Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.

Precision-Force Spring System	Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System	This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

Fast Focus Eyepiece	Allows quick and easy reticle focusing.
Magnification Rib	The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.

RETICLES

EBR-2C (MOA)

Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.

Subtension detail for DIAMONDBACK® TACTICAL 6-24X50 FFP with EBR-2 MOA reticle.

View Detail

RETICLES

EBR-2C (MRAD)

Hash-marked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.

Subtension detail for Diamondback Tactical 6-24x50 FFP riflescope with EBR-2C MRAD reticle.
