AR-BDC3 (MOA) Reticle | 30 mm Tube

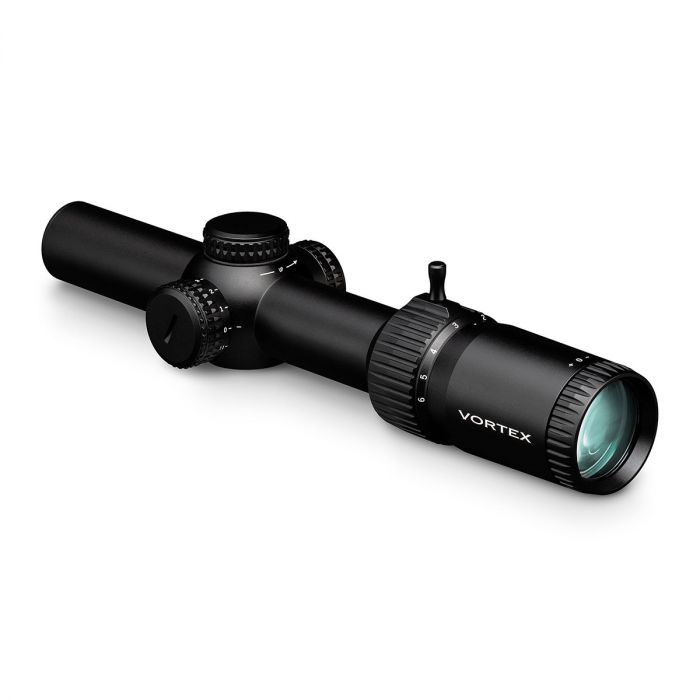

Speed and versatility - that’s what 1x variable optics offer AR shooters who need to engage targets from point-blank out to extended ranges. And that’s exactly what you’re going to get with Vortex’s new Strike Eagle 1-6 x 24.
Whether you’re burning through a 3-Gun Stage, logging some range time, or holding for hair on a coyote you’ve duped into thinking you’re lunch, the Strike Eagle is up to the task. High-quality, fully multi-coated lenses deliver a clear, crisp sight picture and optimal low-light performance. A true one-power on the low end of its 6x zoom range provides quick target acquisition in close quarters scenarios. Need to engage targets at distance? Crank it up to 6x and let it rip.
Strike Eagle 1-6x24 Dimensions (in inches)
| Lengths | Heights | |||||
| L1 | L2 | L3 | L4 | L5 | H1 | H2 |
| 10.5 | 2.9 | 2.1 | 6.6 | 3.9 | 1.2 | 1.7 |
| Objective Lens Diameter | 24 mm |
|---|---|
| Magnification | 1-6x |
| Tube Size | 30 mm |
| Eye Relief | 3.5 inches |
| Field of View | 116.5-19.2 ft @100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 44 MOA |
| Max Elevation Adjustment | 140 MOA |
| Max Windage Adjustment | 140 MOA |
| Parallax Setting | 100 yards |
| Length | 10.5 inches |
| Weight | 17.6 oz |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
Illuminated Reticle
Provides precise aiming under low-light conditions
Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof
Rugged construction withstands recoil and impact.
Waterproof - IPX7
Designed to meet IPX7 waterproofing standards.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Matte Anodized Finish
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Hard Anodized Black Finish
Highly durable Type III hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
AR-BDC3 RETICLE
The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 16.625 MOA broken circle gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.
Subtension detail for Strike Eagle 1-6x24 riflescope with AR-BDC3 reticle.
| Objective Lens Diameter | 24 mm |
|---|---|
| Magnification | 1-6x |
| Tube Size | 30 mm |
| Eye Relief | 3.5 inches |
| Field of View | 116.5-19.2 ft @100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 44 MOA |
| Max Elevation Adjustment | 140 MOA |
| Max Windage Adjustment | 140 MOA |
| Parallax Setting | 100 yards |
| Length | 10.5 inches |
| Weight | 17.6 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Riflescopes/Strike_Eagle/1-6X24/M-00126-0.pdf |
| Reticle Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Riflescopes/Strike_Eagle/1-6X24/M-00128-0.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Riflescopes/Strike_Eagle/1-6X24/VTX_SE-1624-2_RS_C_XVIEW_V1.pdf |
