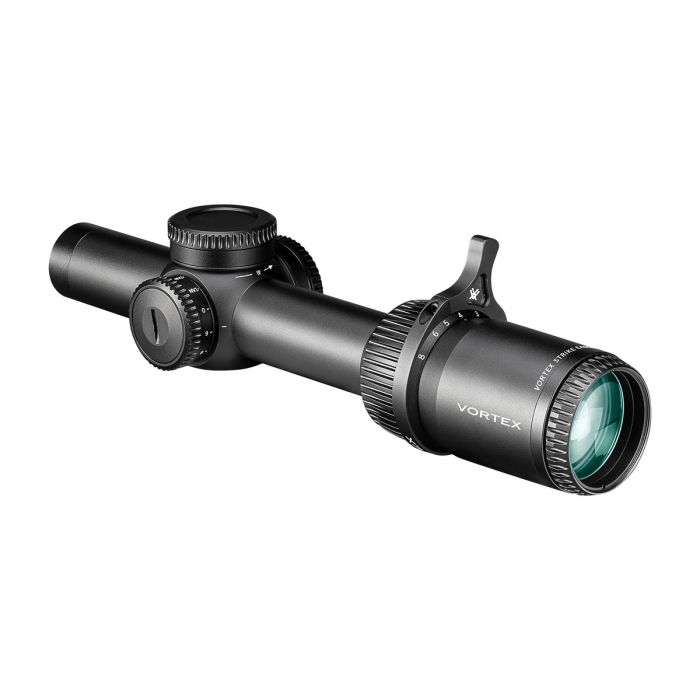

The Strike Eagle® 1-8x24 FFP gives you the accurate holdovers at any magnification you've been looking for in an LPVO, allowing you to dominate close quarters and stretch your effective range.
Strike Eagle 1-8x24 Dimensions (in inches)
| Lengths | Heights | |||||
| L1 | L2 | L3 | L4 | L5 | H1 | H2 |
| 10.4 | 6 | 3.8 | 2.5 | 1.9 | 1.89 | 1.93 |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 24 mm |
| Magnification | 1-8x |
| Tube Size | 30 mm |
| Eye Relief | 3.5 inches |
| Field of View | 113.6-14.1 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 25 MOA |
| Max Elevation Adjustment | 145 MOA |
| Max Windage Adjustment | 145 MOA |
| Parallax Setting | 125 yards |
| Length | 10.4 inches |
| Weight | 23.9 oz |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
Illuminated Reticle
Provides precise aiming under low-light conditions
Fully Multi-Coated
Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof
Rugged construction withstands recoil and impact.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Low-Glare Matte Black Anodized
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Throw Lever
The included throw lever can be installed for quick and easy magnification adjustments.
EBR-8 RETICLE
Our exclusive EBR-8 MOA first focal plane, glass-etched, illuminated reticle facilitates rapid shooting from point blank out to 600 yards with popular .223/5.56mm and .308/7.62mm loads. This reticle also can be used with a wide variety of other calibers and loads using the BDC hashmarks.
Subtension detail for the Strike Eagle 1-8x24 FFP riflescope with EBR-8 MOA reticle.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 24 mm |
| Magnification | 1-8x |
| Tube Size | 30 mm |
| Eye Relief | 3.5 inches |
| Field of View | 113.6-14.1 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 25 MOA |
| Max Elevation Adjustment | 145 MOA |
| Max Windage Adjustment | 145 MOA |
| Parallax Setting | 125 yards |
| Length | 10.4 inches |
| Weight | 23.9 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Riflescopes/Strike_Eagle/1-8X24_FFP/VTX_M-00319-0_WEB.pdf |
| Reticle Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Riflescopes/Strike_Eagle/1-8X24_FFP/EBR-8_MOA_Reticle_Manual.pdf |
