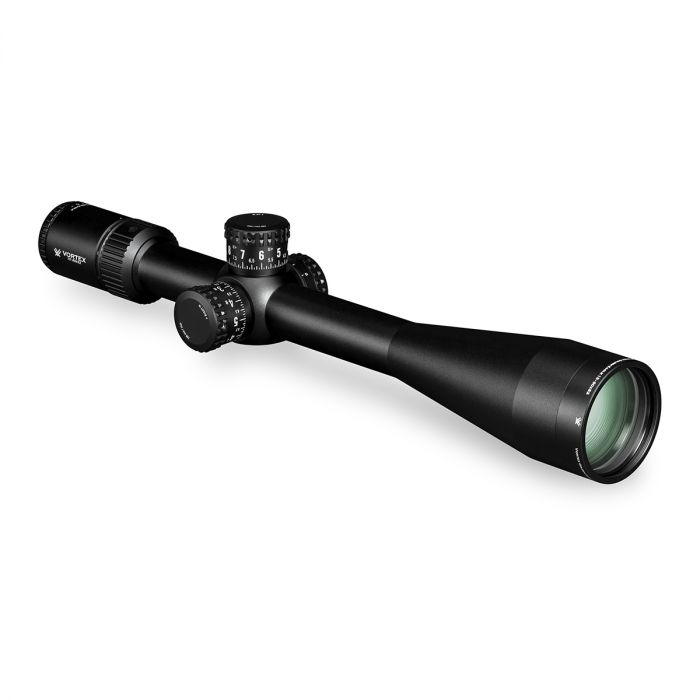

GOLDEN EAGLE® HD
15-60x52
SCR-1 (MOA) Reticle | 30mm Tube
ECR-1 (MOA) Reticle | 30mm Tube
SCR-1 (MOA) Reticle | 30mm Tube
ECR-1 (MOA) Reticle | 30mm Tube
The Golden Eagle HD offers a unique set of features specifically designed for F Class and Bench Rest competition shooters. The 15-60x magnification range, ultra-precise 1/8 MOA adjustments and extremely fine, second focal plane reticle options help maximize precision on known-distance long-range targets. All these features and more are complimented by a top-tier optical system making for a super-sharp target picture down range and the ability to read mirage and other wind indicators accurately. Equally impressive, the Golden Eagle weighs in at a relatively light 29.5 ounces, helping shooters adhere to strict competition weight limits. When you’re going for gold in F Class or Bench Rest, go for the Golden Eagle to top your rifle.
Golden Eagle HD 15-60x52 Dimensions (in inches)
Lengths | Heights | ||||||
L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
16.1 | 3.5 | 2.28 | 7.5 | 5.51 | 3.09 | 2.41 | 1.73 |
APO System | Index-matched lenses correct color across the entire visual spectrum. |
Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
HD Lens Elements | Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images. |
XR™ Plus Fully Multi-Coated | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance |
Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
Shockproof | Rugged construction withstands recoil and impact. |
ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Side Focus | Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
Extra-Fine Resolution Turret | The resolute increment of adjustment of just 0.125 MOA per click allows competitive shooters to make very small adjustments to fine tune their shots. |
Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Optional 10 MOA Windage Turret | Included accessory turret allows for dialing a full 10 MOA revolution of windage before the scale repeats. |
ASR (Aperature Stop Ring) | Broadens the depth of focus allowing the shooter to more easily observe down range mirage and other wind indicators while keeping the target in focus. |
Aluminum Lens Caps | Premium aluminum screw on eyepiece and objective lens covers included. |
SCR-1 (MOA)
The SCR-1 (Simple Crosshair Reticle) is the exact opposite of a “busy” reticle. The only thing that needs your attention is a traditional set of fine crosshairs that subtend 0.016 MOA at 40X.
Subtension detail for Golden Eagle HD 15-60x52 riflescope with SCR-1 MOA reticle.
ECR-1 (MOA)
The ECR-1(Enhanced Crosshair Reticle) ) is a hash marked reticle using moa based subtension lines for holdover, and windage corrections. The floating center dot subtends 0.095 MOA at 40X.
Subtension detail for Golden Eagle HD 15-60x52 riflescope with ECR-1 MOA reticle.
Objective Lens Diameter | 52 mm |
---|---|
Magnification | 15-60x |
Tube Size | 30 mm |
