Dead-Hold® BDC (MOA) Reticle | 30mm Tube
When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From big game to predators, there’s a proven model for every hunting application. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.

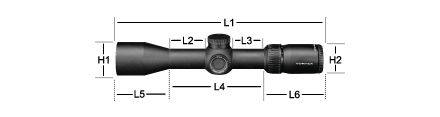

Viper® HD 2-10x42 Dimensions (in inches)
| Lengths | Heights | ||||||
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
| 12.1 | 2.1 | 1.8 | 5.5 | 3.5 | 3.4 | 1.95 | 1.7 |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 42 mm |
| Magnification | 2-10x |
| Tube Size | 30 mm |
| Eye Relief | 3.4" |
| Field of View | 61.6' - 11.9' @100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 135 MOA |
| Max Windage Adjustment | 135 MOA |
| Parallax Setting | 100 yards |
| Length | 12.1" |
| Weight | 19.9 oz |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Illuminated Reticle
Provides precise aiming under low-light conditions.
30mm Main Tube
For increased travel.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminium
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Low Glare Matte Black Anodize
Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Dead-Hold BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting and shooting at varying ranges, where estimating holdover is a concern.
Subtension detail for Viper HD 2-10x42 riflescope with Dead-Hold® BDC (MOA) reticle.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 42 mm |
| Magnification | 2-10x |
| Tube Size | 30 mm |
| Eye Relief | 3.4" |
| Field of View | 61.6' - 11.9' @100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 135 MOA |
| Max Windage Adjustment | 135 MOA |
| Parallax Setting | 100 yards |
| Length | 12.1" |
| Weight | 19.9 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Viper_HD/2-10x42/VTX_M-00360_WEB.pdf |
| Reticle Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Viper_HD/2-10x42/VTX_M-00355_WEB.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Viper_HD/2-10x42/VTX_VPR-21001_DEAD-HOLD-BDC_MOA_RS_I_RI_ST.pdf |
