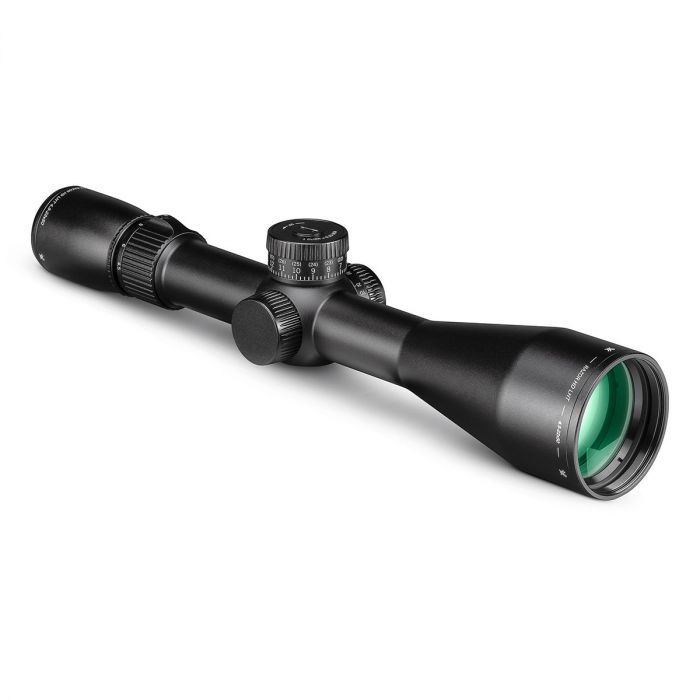

RAZOR® HD LHT™

4.5-22x50 FFP

XLR-2 (MOA) Reticle | 30 mm Tube

XLR-2 (MRAD) Reticle | 30 mm Tube

As low as $1,499.99 Regular Price $2,199.99

In stock

SKU: Razor® HD LHT™ 4.5-22x50 FFP

UPC: Razor® HD LHT™ 4.5-22x50 FFP

SKU: RZR-42201

UPC: 843829117227

SKU: RZR-42202

UPC: 843829117234

Only %1 left

Overview
Videos
Features
Reticle
Accessories

Overview

Western hunting demands an optic built for long range and the long haul, and the Razor® HD LHT™ 4.5-22x50 FFP delivers. You still get the core of the Razor® HD LHT™, including a stunning HD optical system and rugged build in a hunting scope that’s among the lightest in its class. Where the Razor® HD LHT™ 4.5-22x50 FFP distances itself is in offering more magnification, and a first focal plane reticle featuring the XLR-2 reticle system, which is intuitive, easy to use, and illuminated. You also get our RevStop™ Zero System for a reliable return to zero after dialing in the field, and a locking elevation turret keeps your zero safe.

Razor HD LHT 4.5-22x50 FFP Dimensions (in inches)

Lengths						Heights
L1	L2	L3	L4	L5	L6	H1	H2
13.3	1.9	2.2	5.6	3.4	4.2	2.3	1.7

Included in the Box

Tethered Lens Covers
Sunshade
Lens Cloth
RevStop Zero Ring
CR2032 Battery

More Information
Manufacturer	Vortex Optics
Objective Lens Diameter	50 mm
Magnification	4.5-22x
Tube Size	30 mm

More Information
Manufacturer	Vortex Optics
Objective Lens Diameter	50 mm
Magnification	4.5-22x
Tube Size	30 mm
Eye Relief	4.0 inches
Field of View	23.5-4.7 ft/100yds
Max Elevation Adjustment	75 MOA
Max Windage Adjustment	45 MOA
Parallax Setting	25 yards to Infinity
Elevation Turret Style	Locking - Exposed
Windage Turret Style	Capped
Elevation Adjustment Graduation	1/4 MOA
Windage Adjustment Graduation	1/4 MOA
Elevation Travel Per Rotation	15 MOA
Windage Travel Per Rotation	15 MOA
Length	13.3 inches
Weight	21.7 oz
Product Manual (PDF)	Download
Reticle Manual (PDF)	Download
Parts Diagram (PDF)	Download

More Information
Manufacturer	Vortex Optics
Objective Lens Diameter	50 mm
Magnification	4.5-22x
Tube Size	30 mm
Eye Relief	4.0 inches
Field of View	23.5-4.7 ft/100yds
Max Elevation Adjustment	22.4 MRAD
Max Windage Adjustment	12.7 MRAD
Parallax Setting	25 meters to Infinity
Elevation Turret Style	Locking - Exposed
Windage Turret Style	Capped
Elevation Adjustment Graduation	.1 MRAD
Windage Adjustment Graduation	.1 MRAD
Elevation Travel Per Rotation	6 MRAD
Windage Travel Per Rotation	6 MRAD
Length	13.3 inches
Weight	21.7 oz
Product Manual (PDF)	Download
Reticle Manual (PDF)	Download
Parts Diagram (PDF)	Download

Long Range Ballistics Calculator

VIDEOS

Razor® HD LHT 4 5 22x50 FFP Riflescope Product Overview part1 2

FEATURES

HD OPTICAL SYSTEM

Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission

XR LENS COATINGS

Premium anti-reflective coatings on all air-to-glass surfaces provide superior light transmission for exceptional clarity and low-light performance.

APO (APOCHROMATIC)

Index-matched lenses correct color across the entire visual spectrum.

Amortek

Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.

Waterproof

Designed to withstand harsh weather conditions.

Shockproof

Designed to withstand the highest levels of recoil and impact.

Fogproof

Designed to withstand a wide range of temperatures

VIP Warranty

VIP stands for a Very Important Promise to you, our customer. We will repair or replace your Vortex® product in the event it becomes damaged or defective—at no charge to you.

First Focal Plane Reticle	The first focal plane XLR-2 reticle is optimized for long range hunting and shooting. The scale of the reticle remains in proportion to the zoomed image making for accurate holdovers and ranging at all magnifications.
HD Optical System	Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Locking Elevation Turret	Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.
RevStop™ Zero System	Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.
XR™ Plus Fully Multi-Coated	Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
APO System	Index-matched lenses correct color across the entire visual spectrum.
Single-Piece Tube	Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek ®	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof	Rugged construction withstands recoil and impact.
Fogproof	Argon gas purging prevents internal fogging over a wide range of temperatures.
Low-Glare Matte Black Anodized	Corrosion and wear resistant anodization provides low glare matte surface and helps camouflage the shooter's position.

RETICLES

XLR-2 (MOA)

The XLR-2 reticle is an illuminated, long-range reticle with elevation and windage reference subtensions. Great for long-range shooters and hunters who prefer to hold for bullet-drop and wind at distance.

Subtension detail for Razor HD LHT 4.5-22x50 FFP riflescope with XLR-2 MOA reticle.

View Details
