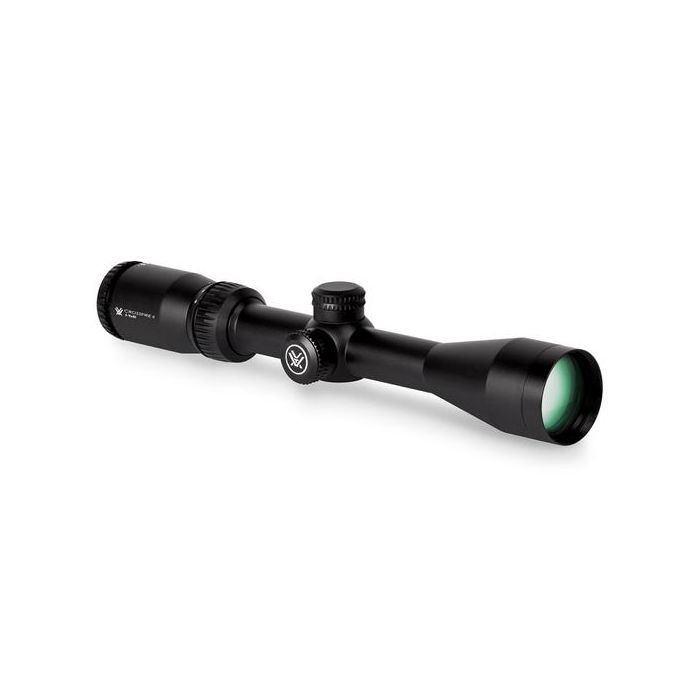

CROSSFIRE® II
3-9x40
Dead-Hold BDC (MOA) Reticle | 1 inch Tube
V-Brite (MOA) Reticle | 1 inch Tube
V-Plex (MOA) Reticle | 1 inch Tube
Dead-Hold BDC (MOA) Reticle | 1 inch Tube
V-Brite (MOA) Reticle | 1 inch Tube
V-Plex (MOA) Reticle | 1 inch Tube
High performance meets economical. Clear, tough, and bright, our popular Crossfire II line is built to exceed the performance standards of similarly priced riflescopes. Long eye relief, a fast-focus eyepiece, fully multi-coated lenses, and resettable MOA turrets are hallmarks of the series.
Crossfire II 3-9x40 Dimensions (in inches)

| Lengths | Heights | ||||||
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
| 11.86 | 2.1 | 2.1 | 5.1 | 3.15 | 3.6 | 1.89 | 1.68 |


Fully Multi-Coated
Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Tube Size
1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminium
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard Anodized Black Finish
Highly durable Type III hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Capped Reset Turrets
Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.
Fast Focus Eyepiece
Allows quick and easy reticle focusing.


Dead-Hold BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Subtension detail for Crossfire II 3-9x40 riflescope with Dead-Hold BDC MOA reticle.
View Details


V-Brite (MOA)
Uses the V-Plex format along with battery-powered electronics to illuminate the center dot for better low-light performance. Good for hunters/shooters during extra-low light conditions.
Subtension detail for Crossfire II 3-9x40 riflescope with V-Brite MOA reticle.
View Details


V-Plex (MOA)
A popular all-purpose hunting reticle intended for a wide variety of hunting applications.
Subtension detail for Crossfire II 3-9x40 riflescope with V-Plex MOA reticle.
View Detail
| Objective Lens Diameter | 40 mm |
|---|---|
| Magnification | 3-9x |
| Tube Size | 1 inch |
