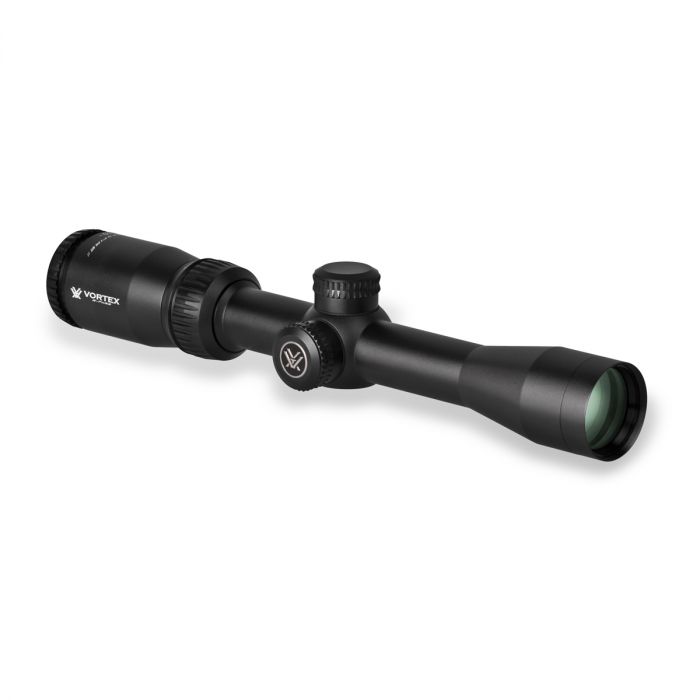

V-Plex (MOA) Reticle | 1 inch Tube
Clearer. Tougher. Brighter. Our popular Crossfire riflescopes are completely redesigned and built to exceed the performance standards of similarly-priced riflescopes. Longer eye relief, a fast-focus eyepiece, fully multi-coated lenses and improved, resettable MOA turrets ensure optimal performance in the field. The hard anodized one-piece aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for a lifetime of waterproof/fogproof performance. The Crossfires deliver - and then some.
Crossfire II 2-7x32 Rimfire Dimensions (in inches)
| Lengths | Heights | ||||||
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
| 11.52 | 1.86 | 1.54 | 4.63 | 3.10 | 2.90 | 1.53 | 1.61 |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 32 mm |
| Magnification | 2-7x |
| Tube Size | 1 inch |
| Eye Relief | 3.9 inches |
| Field of View | 42-12.6 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 60 MOA |
| Max Windage Adjustment | 60 MOA |
| Parallax Setting | 50 yards |
| Length | 11.5 inches |
| Weight | 13.9 oz |
| Product Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
| Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
| Tube Size | 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret. |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Dead-Hold BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Subtension detail for Crossfire II 2-7x32 Rimfire riflescope with V-Plex MOA reticle.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 32 mm |
| Magnification | 2-7x |
| Tube Size | 1 inch |
| Eye Relief | 3.9 inches |
| Field of View | 42-12.6 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 60 MOA |
| Max Windage Adjustment | 60 MOA |
| Parallax Setting | 50 yards |
| Length | 11.5 inches |
| Weight | 13.9 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Crossfire_II/2-7X32_RF/VTX_M-00214-1_WEB.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Crossfire_II/2-7X32_RF/VTX_CF2-31001R_RS_C_XVIEW_V1.pdf |
