DIAMONDBACK®

3-9x40

Dead-Hold BDC (MOA) Reticle | 1 inch Tube

V-PLEX (MOA) Reticle | 1 inch Tube

As low as $249.99 Regular Price $349.99

In stock

SKU: Diamondback® 3-9x40

UPC: Diamondback® 3-9x40

SKU: DBK-01-BDC

UPC: 875874001138

SKU: DBK-M-01P

UPC: 875874000865

Only %1 left

Overview
Videos
Features
Reticle
Accessories

Overview

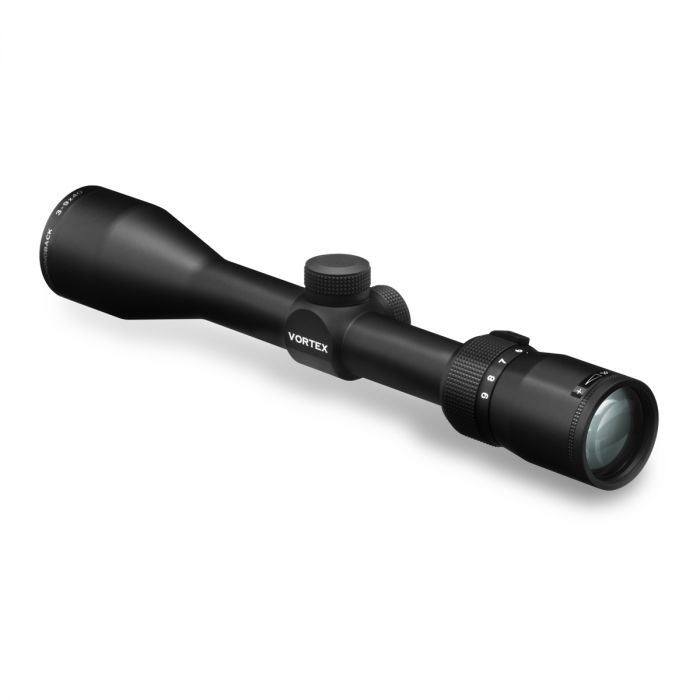

The Diamondback riflescope completely changes the rules when it comes to “you get what you pay for”. The performance-to-price ratio on this classic go-to hunting scope is off the charts when it comes to image quality, build quality and overall feel of the turrets and the fast-focus eyepiece. If you’re in the market for a high-quality riflescope, look no further than the Diamondback—a quality riflescope that offers a variety of configurations at a price that will leave you with plenty of money left over for ammo.

Diamondback 3-9x40 Dimensions (in inches)

Lengths						Heights
L1	L2	L3	L4	L5	L6	H1	H2
11.61	2.0	2.1	5.4	3.07	3.1	1.89	1.69

Included in the Box

Removable lens covers
Lens cloth

More Information
Objective Lens Diameter	40 mm
Magnification	3-9x
Tube Size	1 inch

More Information
Manufacturer	Vortex Optics
Objective Lens Diameter	40 mm
Magnification	3-9x
Tube Size	1 inch
Eye Relief	3.3 inches
Field of View	44.6-14.8 ft/100 yds
Turret Style	Capped
Adjustment Graduation	1/4 MOA
Travel Per Rotation	15 MOA
Max Elevation Adjustment	70 MOA
Max Windage Adjustment	70 MOA
Parallax Setting	100 yards
Length	11.61 inches
Weight	14.5 oz
Product Manual (PDF)	Download
Reticle Manual (PDF)	Download
Parts Diagram (PDF)	Download

More Information
Manufacturer	Vortex Optics
Objective Lens Diameter	40 mm
Magnification	3-9x
Tube Size	1 inch
Eye Relief	3.3 inches
Field of View	44.6-14.8 ft/100 yds
Turret Style	Capped
Adjustment Graduation	1/4 MOA
Travel Per Rotation	15 MOA
Max Elevation Adjustment	70 MOA
Max Windage Adjustment	70 MOA
Parallax Setting	100 yards
Length	11.61 inches
Weight	14.5 oz
Product Manual (PDF)	Download
Parts Diagram (PDF)	Download

Long Range Ballistics Calculator

VIDEOS

DIAMONDBACK RIFLESCOPE

FEATURES

Argon Purged

Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.

Waterproof

Designed to withstand harsh weather conditions.

VIP Warranty

VIP stands for a Very Important Promise to you, our customer. We will repair or replace your Vortex® product in the event it becomes damaged or defective—at no charge to you.

Fully Multi-Coated	Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle	Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Tube Size	1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece Tube	Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof	Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof	Rugged construction withstands recoil and impact.
Hard Anodized Finish	Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Capped Reset Turrets	Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

Precision-Glide Erector System

This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges.

Fast Focus Eyepiece

Allows quick and easy reticle focusing

RETICLES

Dead-Hold BDC (MOA)

Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.

Subtension detail for Diamondback 3-9x40 riflescope with Dead-Hold BDC MOA reticle.
