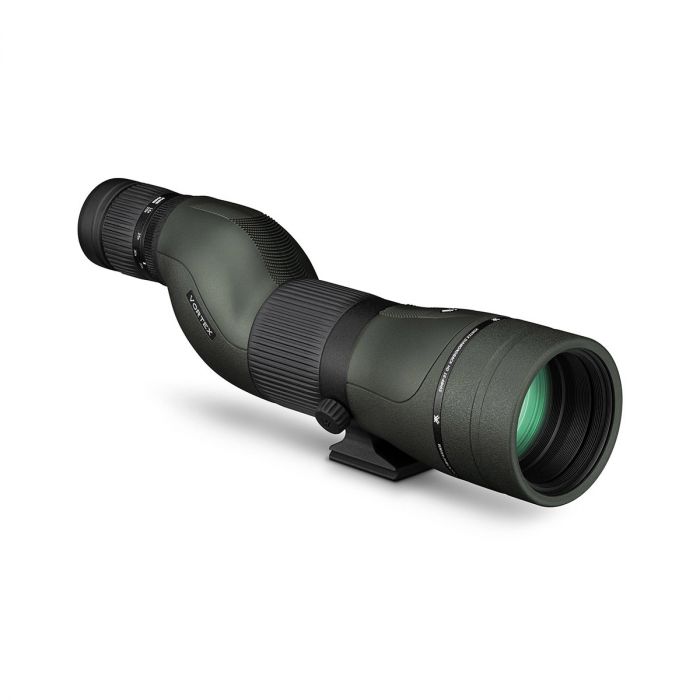

Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in lowlight—right when you need it most. We've also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 85 mm |
| Magnification | 20-60x |
| Eye Relief | 20.3-18.3 mm |
| Linear Field of View | 108-60ft/1000yds |
| Angular Field of View | 2.1-1.1 degrees |
| Close Focus | 24.6 feet |
| Exit Pupil | 4.25-1.41 mm |
| Length | 15.75 inches |
| Weight | 61.3 oz |
| Product Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
| Fully Multi-Coated | Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Armortek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Adjustable Eyecups | Twist up and down for comfortable viewing with or without eyeglasses. |
| Helical Focus | Allows for fast and fine adjustments. |
| Arca-Swiss Compatible | Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads. |
| Tripod Adaptable | Allowing use on a tripod or car window mount. Tripod adapter required. |
| Rotating Tripod Ring | Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles. |
| Built-in Sunshade | Reduces glare and shields the objective lens from raindrops and snow. |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 85 mm |
| Magnification | 20-60x |
| Eye Relief | 20.3-18.3 mm |
| Linear Field of View | 108-60ft/1000yds |
| Angular Field of View | 2.1-1.1 degrees |
| Close Focus | 24.6 feet |
| Exit Pupil | 4.25-1.41 mm |
| Length | 15.75 inches |
| Weight | 61.3 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/SpottingScopes/Diamondback_HD/VTX_M-00282-0_DB_HD_SS_P_PM_WEB.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/SpottingScopes/Diamondback_HD/VTX_DS-85S_HD_SS_C_XVIEW_v1.pdf |
