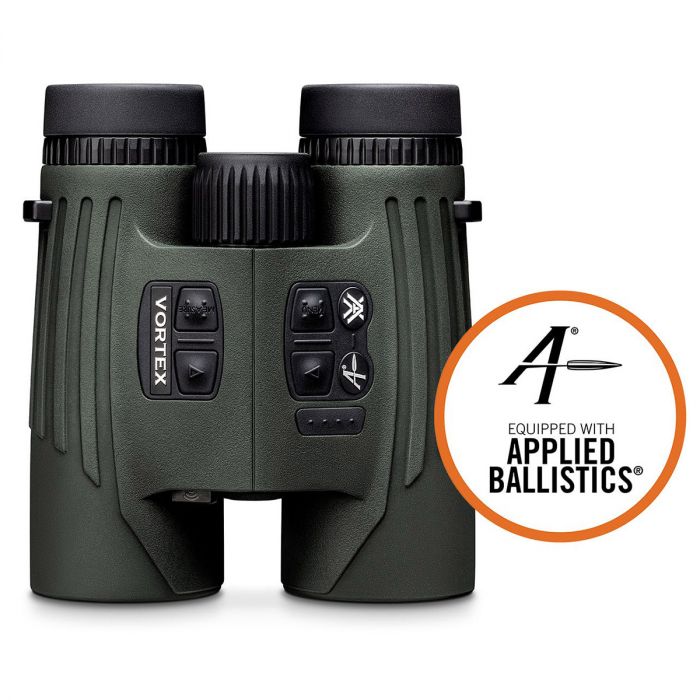

FURY® HD 5000 AB
10x42
The next generation Fury® HD 5000 AB takes the guess work out of dialing long-range shots with in-display ballistic data and built-in environmental sensors and wind bearing capture mode, which means less time calculating ballistics and more time putting rounds down range. With the Applied Ballistics® Elite solver built right in, you can pair with the FURY HD app to create custom ballistic profiles, and with popular Kestrel® and Garmin® devices for the ultimate in real-time precision. Put simply, it's a smarter way to shoot.
Range Reflective | 5-5000 yards |
Range Tree | 5-2400 yards |
Range Deer | 5-1600 yards |
Manufacturer | Vortex Optics |
---|---|
Objective Lens Diameter | 42 mm |
Magnification | 10x |
Eye Relief | 16 mm |
Exit Pupil | 4.2 mm |
Linear Field of View | 321ft/1000yards |
Angular Field of View | 6.1 degrees |
Close Focus | 18.5 feet |
Interpupillary Distance | 58-72mm |
Height | 5.8 inches |
Width | 5.0 inches |
Weight | 32.4 oz |
Product Manual (PDF) | Download |
Parts Diagram (PDF) | Download |
Ballistics Manual (PDF) | Download |
HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
Dielectric Coating | Multi-layer prism coatings provide bright, clear, color-accurate images. |
XR™ Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
Phase Correction | Coating on roof prism models enhances resolution and contrast |
ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
Ballistic Mode | Displays the actual line of sight range and wind/drop solution. |
Best Mode | Displays the strongest range result. Intended to be the primary mode. |
Last Mode | Displays the furthest distance when ranging/panning/scanning. Ideal for ranging targets behind potential obstructive objects in the foreground - like brush, trees and rocks. |
HCD | Horizontal Component Distance (HCD) mode for angle compensated ranging. |
Scan | This feature displays continual distance readings when panning across a landscape or tracking a moving animal. |
BAL Holdover Display
The Fury® HD 5000 AB uses LOS (Line of Sight) ranging and built in Applied Ballistics® Elite Solver to calculate and display real-time ballistic holdovers. Capable of calculating and displaying holdovers out to 5000 yards on reflective targets.
Subtension detail for Fury HD 5000 AB 10x42.
Manufacturer | Vortex Optics |
---|---|
Objective Lens Diameter | 42 mm |
Magnification | 10x |
Eye Relief | 16 mm |
Exit Pupil | 4.2 mm |
Linear Field of View | 321ft/1000yards |
Angular Field of View | 6.1 degrees |
Close Focus | 18.5 feet |
Interpupillary Distance | 58-72mm |
Height | 5.8 inches |
Width | 5.0 inches |
Weight | 32.4 oz |
Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Binoculars/Fury_HD/Fury_HD_5000_AB/VTX_LRF302_PM.pdf |
Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Binoculars/Fury_HD/Fury_HD_5000_AB/VTX_LRF302_HD 5000 AB_RF BIN_C_XVIEW_v1.pdf |
Ballistics Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Binoculars/Fury_HD/Fury_HD_5000_AB/VTX_LRF302_BM.pdf |
