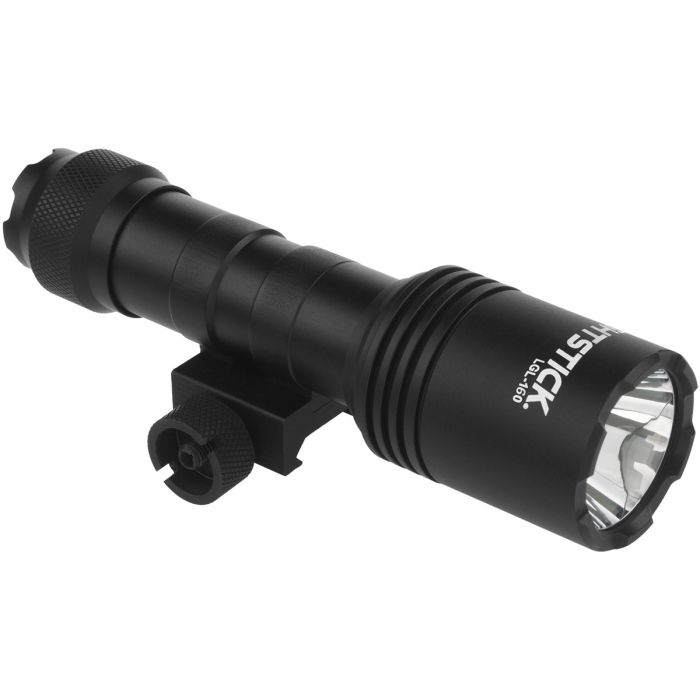

The LGL-160 Long Gun Light Kit is a complete weapon lighting system for your rifle, carbine, or shotgun. Made of 6061-T6 aluminum and hard anodized black, it features a super-bright LED rated at 1100 lumens with a 2-hour runtime. Designed around a high-efficiency deep parabolic reflector, the LGL-160's tightly focused beam reaches out to 300 meters. The light comes installed with a standard tail cap switch and reversible thumbscrew Picatinny mount. It can alternatively be mounted with the included offset Picatinny mount, providing flexible options to clear front sights and other mounted equipment while allowing easy support hand activation.
Both the tail cap switch as well as the included 6" remote pressure pad/switch feature momentary or constant-on modes. The kit also includes an RPS Picatinny rail mount and Nightstick-exclusive wire management rail clamp to prevent cable snags.
Included in the kit:
LGL-160 weapon light
LGL-ENDCAP2 tail cap switch
LGL-RPS2 remote pressure switch (6” cable)
LGL-SM1 standard Picatinny mount w/thumb screw
LGL-OM1 45º offset Picatinny mount w/thumb screw
NS-PIC1 pressure switch rail mount
NS-WM1 wire management clamp
(2) CR123 batteries
Allen wrench
Alcohol prep pad
Adhesive-backed Velcro mounting strip
Instruction manual(PDF) Download
Product Manual(PDF) Download
| LED technology |
| Features both tail cap and 6" Remote Pressure Switches |
| Momentary or constant-on function |
| Standard and offset Picatinny rail mounts |
| Sharp focused beam for distance illumination |
| Aircraft-grade 6061-T6 aluminum housing w/Type III hard-anodized finish |
| Beam distance rated at 300 meters |
| IP-X7 Waterproof |
| Impact & chemical resistant |
| Serialized for personal identification |
| (2) CR123 batteries (included) |
| Limited Lifetime Warranty |
| Xtreme Lumens: | Yes |
| Multi-Function: | Yes |
| Flashlight Lumens: | 1100 |
| Beam Distance: | 300 m |
| Candela: | 22,541 |
| Drop Rating: | 2 m |
| Dust/Water Rating: | IP-X7 Water-Resistant |
| Flashlight Runtime: | 2 hrs. |
| Switch Function: | Momentary or constant-on |
| Light Source: | LED |
| Body Color: | Black |
| Quantity of Batteries: | 2 |
| Backup Power Source: | CR123 |
| Length: | 5.3 in (135 mm) |
| Width: | 0.9 in (23 mm) |
| Weight: | 6.3 oz (179 g) |
| Diameter: | 0.9 in (23 mm) |
| Head Diameter: | 1.4 in (36 mm) |
| Battery Type / Power Source | CR123 |
|---|---|
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Lighting/Weapon_Mounted/Nightstick/Long_Gun/INS-LGL-160.pdf |
| Specification Sheet (PDF) | https://weaponholder.com/media/manuals/Lighting/Weapon_Mounted/Nightstick/Long_Gun/FLY-LGL-160.pdf |
