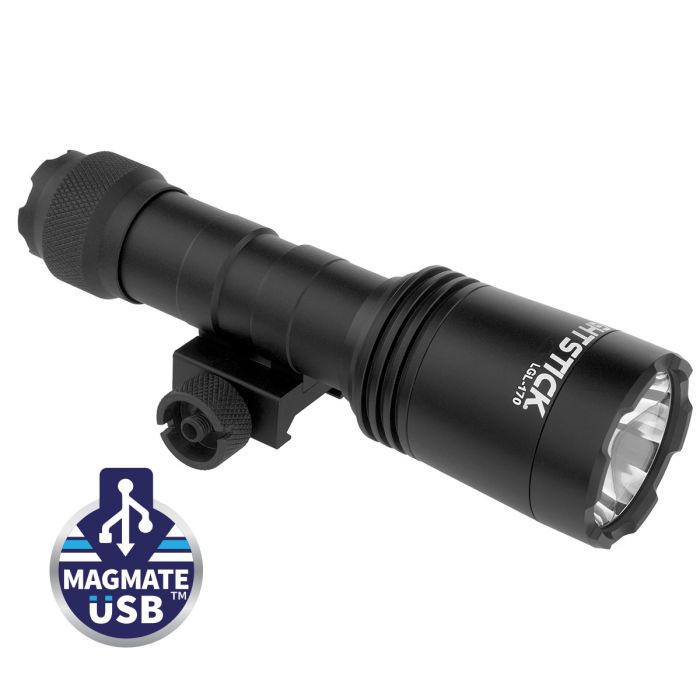

The LGL-170 Rechargeable Full-Size Long Gun Light Kit is a complete weapon lighting system for your rifle, carbine, or shotgun. Made of 6061-T6 aluminum and hard anodized black, it features a super-bright LED rated at 1500 lumens with a 1.5-hour runtime. Designed around a high-efficiency deep parabolic reflector, the LGL-170's tightly focused beam reaches out to 304 meters. The light comes installed with a standard tail cap switch and reversible thumbscrew Picatinny mount. It can alternatively be mounted with the included offset Picatinny mount, providing flexible options to clear front sights and other mounted equipment while allowing easy support hand activation.
Both the tail cap switch as well as the included 6" remote pressure pad/switch feature momentary or constant-on modes. The kit also includes an RPS Picatinny rail mount and Nightstick-exclusive wire management rail clamp to prevent cable snags. The rechargeable LGL-170 weapon light kit includes (2) 18650 lithium-ion batteries, a single 18650 battery charger, and a 2' USB charging cable to hot-swap a fully-charged battery as needed. As an added bonus, the LGL-170 also runs on a pair of CR123 batteries.
Product Manual Download
| LED technology |
| Features both tail cap and 6" Remote Pressure Switches |
| Momentary or constant-on flashlight, & strobe |
| Standard and offset Picatinny rail mounts |
| Sharp focused beam for distance illumination |
| Aircraft-grade 6061-T6 aluminum housing w/Type III hard-anodized finish |
| Beam distance rated at 304 meters |
| IP-X7 Waterproof |
| Impact & chemical resistant |
| Serialized for personal identification |
| (2) 18650 batteries, single charger and 2' USB cable (included) |
| (2) CR123 batteries (optional) |
| Limited Lifetime Warranty |
| Xtreme Lumens: | Yes |
| Multi-Function: | Yes |
| Flashlight Lumens: | 1500 |
| Beam Distance: | 304 m |
| Candela: | 23,148 |
| Drop Rating: | 2 m |
| Dust/Water Rating: | IP-X7 Water-Resistant |
| Flashlight Runtime: | 1.5 hrs. |
| Switch Function: | Momentary or constant-on |
| Length: | 5.5 in (140 mm) |
| Width: | 0.9 in (23 mm) |
| Weight: | 7.5 oz (213 g) |
| Diameter: | 0.9 in (23 mm) |
| Head Diameter: | 1.5 in (38 mm) |
| Light Source: | LED |
| Body Color: | Black |
| Quantity of Batteries: | 1 |
| Power Source: | Rechargeable Lithium-Ion Battery |
| Max Input: | 12VDC 0.5A |
| Backup Power Source: | (2) CR123 batteries (not included) |
| Battery Type / Power Source | Li-ion Rechargeable |
|---|---|
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Lighting/Weapon_Mounted/Nightstick/Long_Gun/INS-LGL-170.pdf |
| Specification Sheet (PDF) | https://weaponholder.com/media/manuals/Lighting/Weapon_Mounted/Nightstick/Long_Gun/FLY-LGL-170-All_Versions_2023.pdf |
