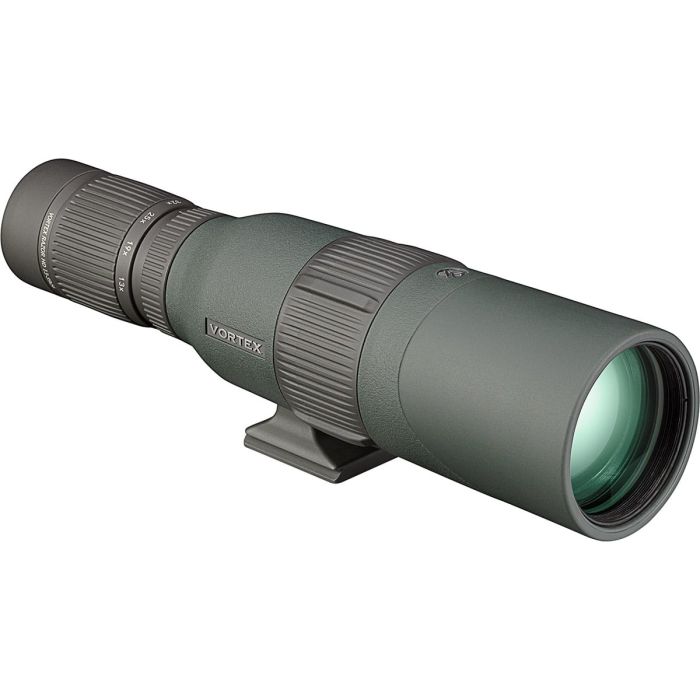

Built to seamlessly fit into the packs of today’s weight-wary, backcountry hunters, the Razor® HD 13-39x56 perfectly balances premium optics
and an incredibly compact package. The helical focus wheel highlights its snag-free profile and puts the power of this spotter’s wide field of view
at your fingertips. Arca-Swiss compatibility fits most tripods out-of-the-box, further simplifying your pack. Brilliant edge-to-edge color and clarity
chew up vast landscapes, capturing every tine and tail twitch.
This spotting scope was made to provide today's weight-conscious hunter a more compact Razor® HD spotting scope. With expanded features and improved optics, it pushes the Razor® HD line of spotters even farther into the highest tier of high-performance glass.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 56 mm |
| Magnification | 13-39x |
| Eye Relief | 5.0mm - 17.8mm |
| Linear Field of View | 168' - 89' @ 1000 yds |
| Angular Field of View | 3.2° - 1.7° @ 1000 yds |
| Close Focus | 9.2' |
| Length | 11.1" |
| Product Manual (PDF) | Download |
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| HD Lens Elements | Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images. |
| XR™ Plus Fully Multi-Coated | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance |
| Porro Prism | Valued for a rich depth of field, wide field of view, and three-dimensional image. |
| Straight Body Design | Valued for speedy target acquisition and ease of use. Most compatible design for use with car window mounts. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Adjustable Eyecups | Twist up and down for comfortable viewing with or without eyeglasses. |
| Arca-Swiss Compatible | Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads. |
| Helical Focus | Allows for fast and fine adjustments. |
| Built-in Sunshade | Reduces glare and shields the objective lens from raindrops and snow |
| Rotating Tripod | Ring Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles. |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 56 mm |
| Magnification | 13-39x |
| Eye Relief | 5.0mm - 17.8mm |
| Linear Field of View | 168' - 89' @ 1000 yds |
| Angular Field of View | 3.2° - 1.7° @ 1000 yds |
| Close Focus | 9.2' |
| Length | 11.1" |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/SpottingScopes/Razor_HD/VTX_M-00108-2_WEB.pdf |
