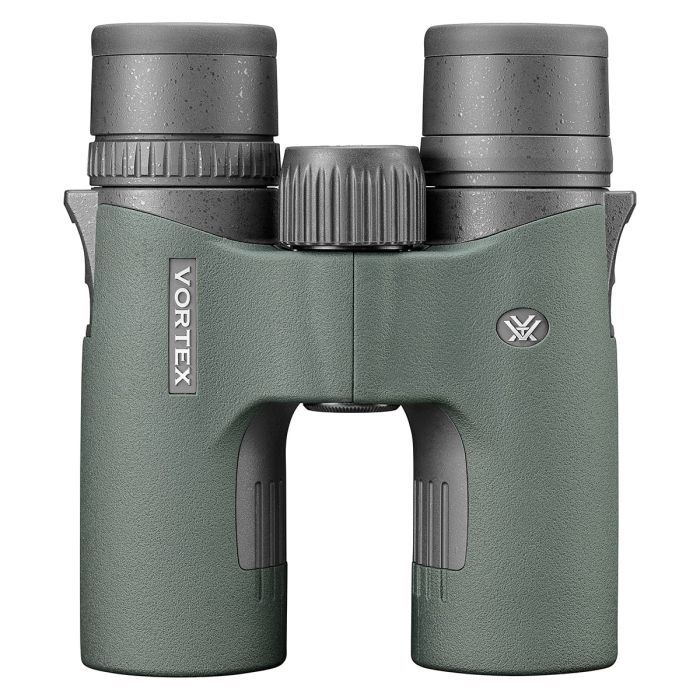

For those who know unforgettable moments don’t happen by chance, Razor® UHD stands at the peak of the Vortex® optics technology—delivering the unmatched clarity and low-light performance once-in-a-lifetime hunts demand. Rugged construction. Smooth ergonomic controls. Spectacular glass that delivers superior brightness and all- around image quality. From dense, river-bottom bucks, to rams above the timberline, early dawn to the depths of dusk—Razor® UHD reveals opportunity otherwise hidden in shadow, giving you incredible viewing power every thrilling second of shooting light.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 32 mm |
| Magnification | 10x |
| Eye Relief | 17.0mm |
| Linear Field of View | 388' @ 1000yards |
| Angular Field of View | 7.4° |
| Close Focus | 5.9' |
| Interpupillary Distance | 55mm - 75mm |
| Height | 5.7" |
| Width | 5.1" |
| Weight | 21.9 oz. |
| Product Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
| UHD Optical System | Ultra high definition optical quality and prescription for unparalleled image resolution that cuts chromatic aberration; providing exceptional color fidelity, edge-to-edge sharpness, and light transmission. |
| APO Chromatic | Index-matched lenses correct color across the entire visual spectrum. |
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Phase Correction | Coating on roof prism models enhances resolution and contrast |
| Schmidt Pechan Prism | Valued for greater durability and a more compact size. |
| True Open Hinge | Offers superior ergonomics while decreasing total weight and bulk. |
| Magnesium Chassis | Decreases weight and increases strength. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of impact. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Rubber Armor | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Adjustable Eyecups | Twist up and down for comfortable viewing with or without eyeglasses. |
| Center Focus Wheel | Adjusts the focus of both binocular barrels at the same time. |
| Locking Diopter | Adjusts for differences in a user's eyes. Located on right eyepiece. |
| Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 32 mm |
| Magnification | 10x |
| Eye Relief | 17.0mm |
| Linear Field of View | 388' @ 1000yards |
| Angular Field of View | 7.4° |
| Close Focus | 5.9' |
| Interpupillary Distance | 55mm - 75mm |
| Height | 5.7" |
| Width | 5.1" |
| Weight | 21.9 oz. |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Binoculars/Razor_UHD/VTX_M-00244-1_WEB-2.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Binoculars/Razor_UHD/VTX_RZB-1032_UHD_BIN_C_XVIEW.pdf |
