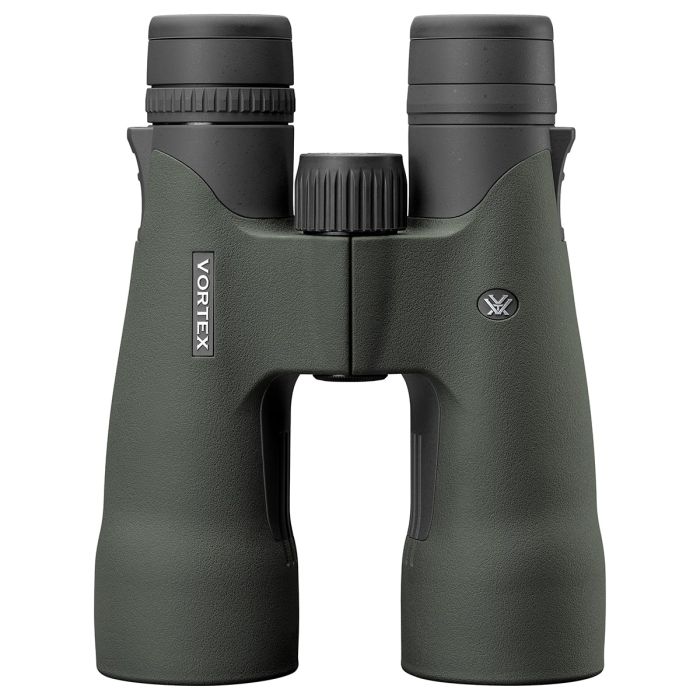

When you want to take the best-of-the-best to the next level... Enter the Razor UHD. The Ultra High Definition optical design features an improved optical prescription and unparalleled image resolution. Whether you need to pick apart a densely packed hillside, or observe the finest details at insanely close distances, the Razor UHD can do it all!
| Objective Lens Diameter | 50 mm |
|---|---|
| Magnification | 12x |
| Eye Relief | 17mm |
| Exit Pupil | 4.2mm |
| Linear Field of View | 288feet/1000yards |
| Angular Field of View | 5.5degrees |
| Close Focus | 6.6feet |
| Interpupillary Distance | 56-76mm |
| Height | 7.6inches |
| Width | 5.9inches |
| Product Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
| Abbe-Koenig | Larger prism with longer optical path resulting in sharper image resolution. |
| UHD Optical System | Ultra high definition optical quality and prescription for unparalleled image resolution that cuts chromatic aberation; providing exceptional color fidelity, edge-to-edge sharpness, and light transmission |
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| XR™ Plus Fully Multi-Coated | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Plasma Tech | Cutting edge coating application process provides unparalleled coating durability and performance |
| Phase Correction | Coating on roof prism models enhances resolution and contrast |
| Roof Prism | Valued for greater durability and a more compact size. |
| True Open Hinge | Offers superior ergonomics while decreasing total weight and bulk. |
| Magnesium Chassis | Decreases weight and increases strength. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Adjustable Eyecups | Twist up and down for comfortable viewing with or without eyeglasses. |
| Center Focus Wheel | Adjusts the focus of both binocular barrels at the same time. |
| Diopter | Adjusts for differences in a user's eyes. Located on right eyepiece. |
| Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
| Objective Lens Diameter | 50 mm |
|---|---|
| Magnification | 12x |
| Eye Relief | 17mm |
| Exit Pupil | 4.2mm |
| Linear Field of View | 288feet/1000yards |
| Angular Field of View | 5.5degrees |
| Close Focus | 6.6feet |
| Interpupillary Distance | 56-76mm |
| Height | 7.6inches |
| Width | 5.9inches |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Binoculars/Razor_UHD/Razor_UHD_Manual.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Binoculars/Razor_UHD/VTX_RZB-3103_UHD_XVIEW_V2.pdf |
