EBR-7C (MRAD) Reticle|34 mm Tube
EBR-7C (MOA) Reticle|34 mm Tube

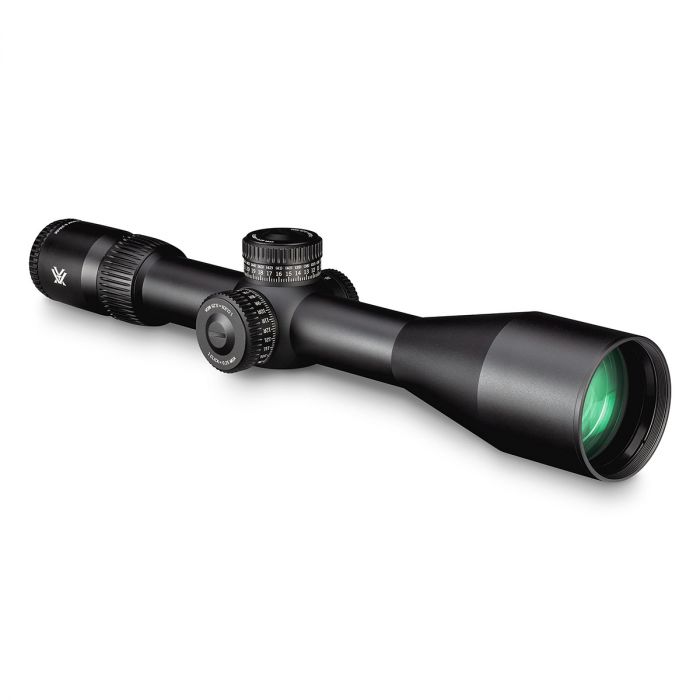

Take the first step into long-range shooting with an optic that helps you go the distance with a ton of shooter-friendly features. Featuring a 5x mag range built into a 34mm tube for a massive amount of turret travel, the Venom® also includes our RevStop™ Zero System for a fast, easy, reliable return to zero. The EBR-7C, First Focal Plane reticle gives you accurate holds at any magnification, and an included throw lever allows for fast transitions between magnifications. It’s the quickest way to get your rifle out to 1,000 yards and beyond at a price that lets you go deep for less
Venom® 5-25x56 FFP Dimensions (in inches)
| Lengths | Heights | ||||
| L1 | L2 | L3 | L4 | H1 | H2 |
| 15.25 | 2.60 | 2.4 | 6.9 | 2.54 | 1.81 |
| Objective Lens Diameter | 56 mm |
|---|---|
| Magnification | 5-25x |
| Tube Size | 34 mm |
| Eye Relief | 3.6 inches |
| Field of View | 21.2-4.7 [email protected] |
| Turret Style | Exposed Tactical |
| Adjustment Graduation | .1 MRAD |
| Travel Per Rotation | 10 MRAD |
| Max Elevation Adjustment | 25 MRAD |
| Max Windage Adjustment | 25 MRAD |
| Parallax Setting | 15 yards to Infinity |
| Length | 15.3 inches |
| Weight | 35 oz. |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
| Objective Lens Diameter | 56 mm |
|---|---|
| Magnification | 5-25x |
| Tube Size | 34 mm |
| Eye Relief | 3.6 inches |
| Field of View | 21.2-4.7 [email protected] yds |
| Turret Style | Exposed Tactical |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 25MOA |
| Max Elevation Adjustment | 85 MOA |
| Max Windage Adjustment | 85 MOA |
| Parallax Setting | 15 yards to Infinity |
| Length | 15.3 inches |
| Weight | 35 oz. |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
| XD™ Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| Fully Multi-Coated | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for optimal clarity and low-light performance. |
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Tactical-Style Turrets | Exposed turrets provide fast, accurate and easily read elevation and windage adjustments. |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
| RevStop™ Zero System | Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments. |
EBR-7C (MRAD)
Hash-marked ranging reticle using MOA or MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
Subtension detail for Venom 5-25x56 FFP riflescope with EBR-7C MRAD reticle. View Detail
Reticle Manual: Download
EBR-7C (MOA)
Hash-marked ranging reticle using MOA or MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
Subtension detail for Venom 5-25x56 FFP riflescope with EBR-7C MOA reticle.
Reticle Manual: Download
| Objective Lens Diameter | 56 mm |
|---|---|
| Magnification | 5-25x |
| Tube Size | 34 mm |
