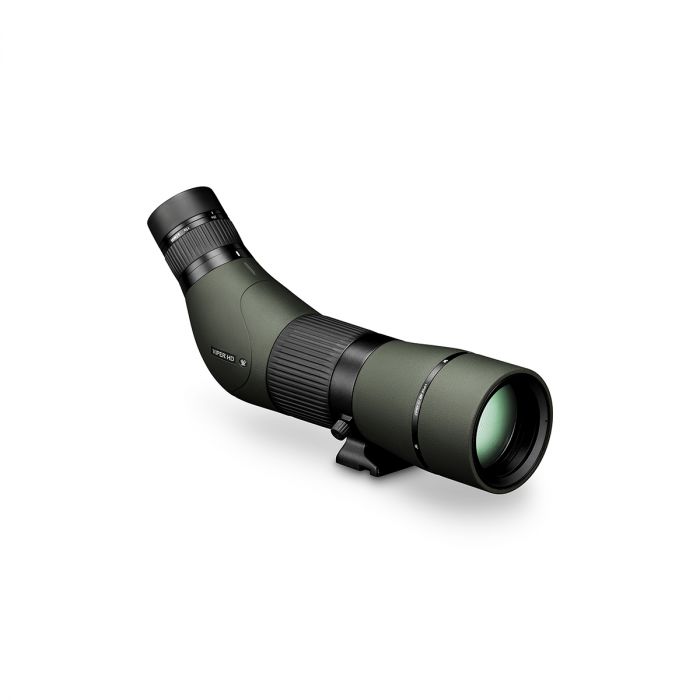

A high-end spotter without the high-end price tag, the Viper HD spotting scope proves you no longer need to drop 4-figures to get premium-level performance and features. An HD optical system with incredible optical performance brings even the finest details at a distance in for a closer look. Built to withstand the harshest rain, snow, heat or rugged abuse you can dish out, the Viper HD spotter is a perfect fit whether you're in the hills or at the range.
Directly mounts to Arca-Swiss tripod heads without the use of additional plates.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 65 mm |
| Magnification | 15-45x |
| Eye Relief | 17.8-19.6 mm |
| Linear Field of View | 136.5-67.8 ft/1000 yds |
| Angular Field of View | 2.6-1.3 degrees |
| Close Focus | 23 feet |
| Length | 14 inches |
| Weight | 59 oz |
| Product Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
| HD Lens Elements | Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images. |
| XR™ Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Dielectric Coating | Multi-layer prism coatings provide bright, clear, color-accurate images. |
| Porro Prism | Valued for a rich depth of field, wide field of view, and three-dimensional image. |
| Angled Body Design | Valued for allowing an overall lower mounting height which maximizes stability in wind, offers greater comfort when glassing for extended periods, and permits the use of a smaller, lighter tripod. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Adjustable Eyecups | Twist up and down for comfortable viewing with or without eyeglasses. |
| Arca-Swiss Compatible | Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads. |
| Helical Focus | Allows for fast and fine adjustments. |
| Built-in Sunshade | Reduces glare and shields the objective lens from raindrops and snow |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 65 mm |
| Magnification | 15-45x |
| Eye Relief | 17.8-19.6 mm |
| Linear Field of View | 136.5-67.8 ft/1000 yds |
| Angular Field of View | 2.6-1.3 degrees |
| Close Focus | 23 feet |
| Length | 14 inches |
| Weight | 59 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/SpottingScopes/Viper_HD/VTX_M-00127-2_WEB.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/SpottingScopes/Viper_HD/VTX_V500_HD_SS_C_XVIEW_v4.pdf |
