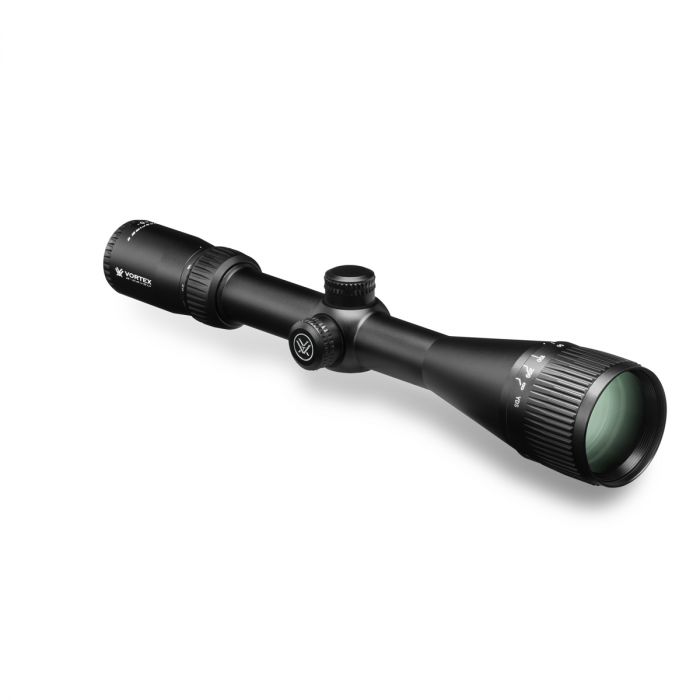

Dead-Hold BDC (MOA) Reticle | 30mm Tube
With long eye relief, a fast-focus eyepiece, fully multi-coated lenses and resettable MOA turrets, there's no compromising on the Crossfire II. Clear, tough and bright, this riflescope hands other value-priced riflescopes their hat. The hard anodized single-piece aircraft-grade aluminum tube is nitrogen purged and o-ring sealed for waterproof/fogproof performance.
Crossfire II 6-24x50 AO Dimensions (in inches)
| Lengths | Heights | ||||||
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
| 14.5 | 1.97 | 2.6 | 5.9 | 5.0 | 3.6 | 2.52 | 1.73 |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 50 mm |
| Magnification | 6-24x |
| Tube Size | 30 mm |
| Eye Relief | 4.0 inches |
| Field of View | 17.3-4.4 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 40 MOA |
| Max Windage Adjustment | 40 MOA |
| Parallax Setting | 10 yards to infinity |
| Length | 14.5 inches |
| Weight | 23.0 oz |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
| Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
| Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position. |
| Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret. |
| Adjustable Objective | Adjustment for riflescope's objective lens provides image focus and parallax removal. |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Dead-Hold BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 50 mm |
| Magnification | 6-24x |
| Tube Size | 30 mm |
| Eye Relief | 4.0 inches |
| Field of View | 17.3-4.4 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 40 MOA |
| Max Windage Adjustment | 40 MOA |
| Parallax Setting | 10 yards to infinity |
| Length | 14.5 inches |
| Weight | 23.0 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Crossfire_II/6-24X50_AO/VTX_M-00214-1_WEB.pdf |
| Reticle Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Crossfire_II/6-24X50_AO/VTX_-M-00240-1_DEAD-HOLD-BDC_MOA_RS_P_RM_WEB.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Crossfire_II/6-24X50_AO/VTX_CF2-31043_CF2-31045_AO_RS_C_XVIEW.pdf |
