Dead-Hold BDC (MOA) Reticle | 1 inch Tube

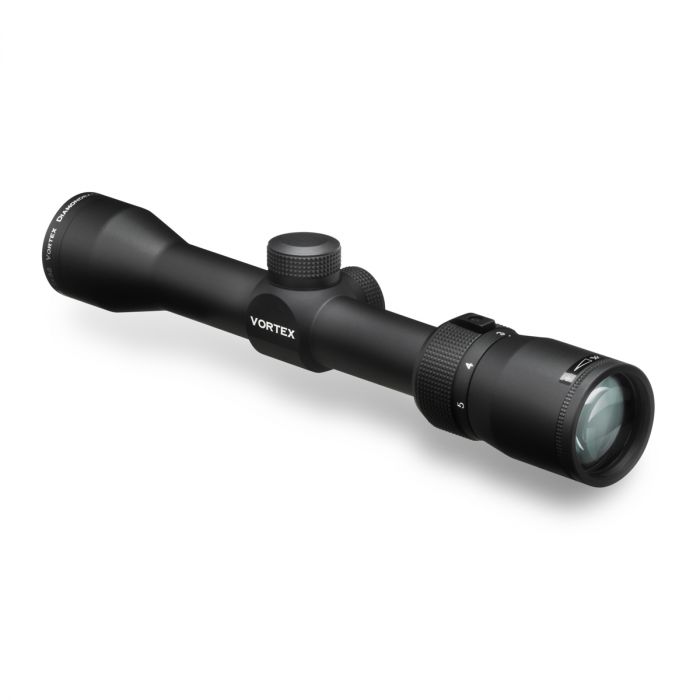

The Diamondback riflescope completely changes the rules when it comes to “you get what you pay for”. The performance-to-price ratio on this classic go-to hunting scope is off the charts when it comes to image quality, build quality and overall feel of the turrets and the fast-focus eyepiece. If you’re in the market for a high-quality riflescope, look no further than the Diamondback—a quality riflescope that offers a variety of configurations at a price that will leave you with plenty of money left over for ammo.
Diamondback 1.75-5x32 Dimensions (in inches)
| Lengths | Heights | ||||||
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
| 10.2 | 1.9 | 1.96 | 5.1 | 1.9 | 3.1 | 1.55 | 1.69 |
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 32 mm |
| Magnification | 1.75-5x |
| Tube Size | 1 inch |
| Eye Relief | 3.5 inches |
| Field of View | 68.3-23.1 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 125 MOA |
| Max Windage Adjustment | 125 MOA |
| Parallax Setting | 100 yards |
| Length | 10.2 inches |
| Weight | 13.0 oz |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
| Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
| Tube Size | 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position. |
| Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret. |
| Precision-Glide Erector System | This system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges. |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing |
Dead-Hold BDC (MOA)
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Subtension detail for Diamondback 1.75-5x32 riflescope with Dead-Hold BDC MOA reticle.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 32 mm |
| Magnification | 1.75-5x |
| Tube Size | 1 inch |
| Eye Relief | 3.5 inches |
| Field of View | 68.3-23.1 ft/100 yds |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 15 MOA |
| Max Elevation Adjustment | 125 MOA |
| Max Windage Adjustment | 125 MOA |
| Parallax Setting | 100 yards |
| Length | 10.2 inches |
| Weight | 13.0 oz |
| Product Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Diamondback/1.75-5X32/VTX_RFL-DBK-13A_DB_RS_P_PM_WEB.pdf |
| Reticle Manual (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Diamondback/1.75-5X32/VTX_-M-00240-1_DEAD-HOLD-BDC_MOA_RS_P_RM_WEB.pdf |
| Parts Diagram (PDF) | https://weaponholder.com/media/manuals/Optics/Vortex/Riflescopes/Diamondback/1.75-5X32/VTX_DBK-08-BDC_DBK-M-08P_RS_C_XVIEW_V1.pdf |
