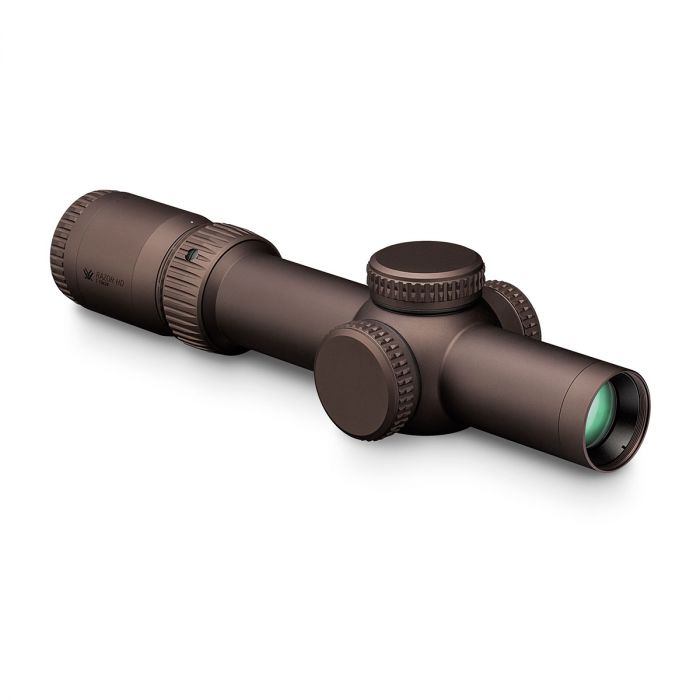

RAZOR® HD GEN III
1-10x24 FFP
EBR-9 (MOA) Reticle | 34mm Tube
EBR-9 (MRAD) Reticle | 34mm Tube
EBR-9 (MOA) Reticle | 34mm Tube
EBR-9 (MRAD) Reticle | 34mm Tube
The next evolution of our wildly popular Razor line, the Razor HD Gen III 1-10x24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as our 1-6x, but doesn’t sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.
Razor HD Gen III 1-10x24 FFP Dimensions (in inches)


| Lengths | Heights | ||||||
| L1 | L2 | L3 | L4 | L5 | L6 | H1 | H2 |
| 10.1 | 2.0 | 2.5 | 6.7 | 0.4 | 3.4 | 1.3 | 1.8 |



| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
| XR™ Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| APO System | Index-matched lenses correct color across the entire visual spectrum. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
| Daylight Bright Illumination | Daylight bright, illuminated reticle aids in faster target acquistion in bright daylight conditions. |
| Armortek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Waterproof - IPX7 | Designed to meet IPX7 waterproofing standards. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Tube Size | 34 mm diameter provides maximized internal adjustment and strength. |
| Hard Anodized Stealth Shadow Finish | Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Friction Reduction System | Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665 |
| Erector Tube System | Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished. |
| L-Tec™ Tool | Included with your scope for precise adjustments to the turret. |
| Locking Side Illumination | Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting. |


EBR-9 (MOA)
The EBR-9 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections.
Subtension detail for Razor HD Gen III 1-10x24 riflescope with EBR-9 MOA reticle.


EBR-9 (MRAD)
The EBR-9 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections.
Subtension detail for Razor HD Gen III 1-10x24 riflescope with EBR-9 MRAD reticle.
| Manufacturer | Vortex Optics |
|---|---|
| Objective Lens Diameter | 24 mm |
| Magnification | 1-10x |
| Tube Size | 34 mm |
