The Weaponholder
The Weaponholder secures the barrel of your weapon. It can be used independently or with the Butt Plate as a System. The Weaponholder has three main sections: an Upper Platform, a Connecting Stem, and the Lower Platform. Each section contains several specialized features performing vital functions which work together to secure the barrel in the Weaponholder and the Weaponholder to the mounting surface.
The Upper Platform
The Upper Platform includes a Track and Rail System, Locking Tabs, an Overmolded Center Ridge, Threaded Inserts and Strap Slots. Together these features allow you to change out Barrel Securing components in seconds. Components can be selected to accommodate conditions of use and a range of barrel diameters.
Locking Tabs located at one end of the rail engage with the Sheaths to assure proper positioning. A Center Ridge contains Threaded Inserts to secure Barrel Clips and has a strategically placed Soft-touch overmold for Zeroing and to prevent barrel slippage. The End Walls have Strap Slots for the Quick Release Tactical Strap.
The Connecting Stem
The Connecting Stem connects the Upper and Lower Platforms and creates an important functional space between the platforms. The space between platforms allows you to grasp the Upper Platform from below for quick attachment and removal from a mounting surface. The Stem contains elliptical anchoring points for the System’s Adjustable Bungee Cords. The Stem’s design incorporates center ridge lines and a series of buttresses on both platforms. These design features provide both superior strength and functionality.
The Lower Platform
The Lower Platform’s purpose is to secure the Weaponholder to a surface. The platform provides several options for temporary or permanent mounting. These include Key Slots, Magnets and Locking Strips for temporary attachment and the option of screws or bolts for permanent attachment. Additional mounting options include Adjustable Bungee Cords and Releasable Cable/Zip Ties. The Lower Platform also features a Soft-touch overmold on the underside to prevent slippage, damage to vehicles and to act as a gasket on permanent installations.

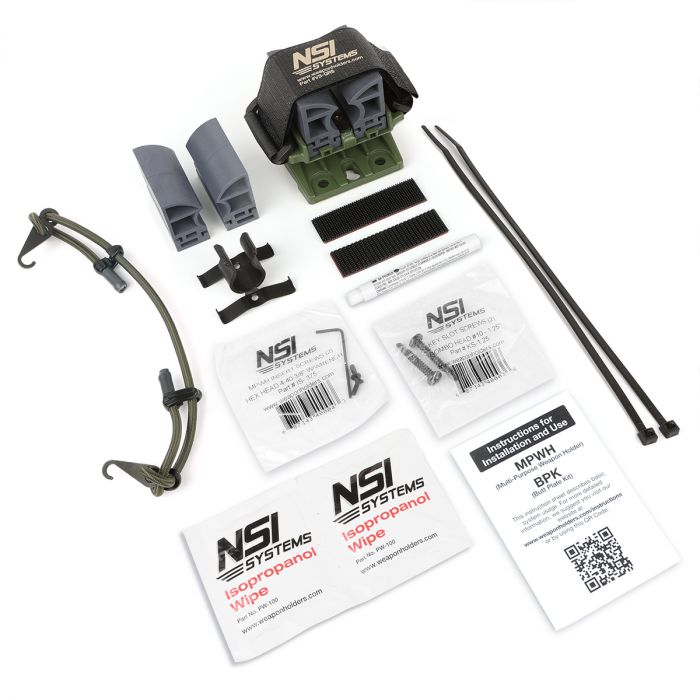

| Part # | MSWH-OD |
| Color | OD Green |
| Material | V-O Rated GF Nylon |
| Overmold | Soft-Touch for zeroing, scratchpad and gasket function. |
| Burn Rating | V-O |
| Dimensions OD | Without Sheaths - L - 2.697" x W - 2.500" x H - 1.800" |
| With Sheaths - L - 2.697" x W - 2.500" x H - 2.980" | |
| Weight | Without Sheaths - 87.4 G = 3.08 oz. |
| With .750" V-O Sheaths & Strap -156.6 = 5.52 oz. | |
| Includes threaded inserts in center ridge and overmold on center ridge and bottom. | |
| Temperature Range | -58°F to +440°F |
| Magnets | 4 - 0.499”x 0.125”NdFeB - Epoxy Coated Black |
| Sheaths Mounte | 2 - V-O Flame Retardant - .750" |
| Sheaths Included | 2 - V-O Flame Retardant - .660" |
| Clip Included | 1 - .750" Powder Coated Barrel Clip with Silicone Clip Covers |
| Strap | 1 - Mil-Spec Quick Release Tactical Strap W/12 Second Burn Rating |
| Bungee Cord | 1 - Mil Spec 18" Adjustable Bungee Cord - Black |
| Releasable Cable Ties | 2- 11" Releasable Cable/Zip Ties 50lb. Nylon - Black |
| MPWH Accessory Kit | Item # AK-MPWH |
| Dimensions & Weight | 4" x 6" Printed Zip Lock Bag - Weight 1.38 oz. |
| Contents | 2 - Isopropanol Prep Wipes |
| 1 - Primer Stick | |
| 2 - Poly Bagged Key Slot/Mounting Screws | |
| 2 - Poly Bagged Insert Screws with Allen Wrench | |
| 2 - .75" x 2.6" Locking Strips | |
| 1 - MPWHS Instruction Sheet |
| Part # | MSBP-BL |
| Color | Matte Black |
| Material | V-O Rated GF Nylon |
| Burn Rating | V-O |
| Dimensions | L - 4.000" x W - 3.075" x H - 2.000" |
| Weight | With Strap - 185.6 G = 6.54 oz. |
| Temperature Range | -58°F to +440°F |
| Strap | 1 - Mil-Spec Quick Release Tactical Strap W/12 Second Burn Rating |
| BPK Accessory Kit | Item # AK-BPK |
| Dimensions & Weight | 4" x 6" Printed Zip Lock Bag - Weight 1.38 oz. |
| Contents | 2 - Isopropanol Prep Wipes |
| 1 - Primer Stick | |
| 2 - Poly Bagged Key Slot/Mounting Screws | |
| 1- .75" x 3" Locking Strip | |
| 1 - .75" x 4" Locking Strip | |
| 1 - MPWHS Instruction Sheet |
What’s the difference between a Mil-Spec Weaponholder and a Standard Weaponholder?
It depends on the types of environments you will be using it in and the surfaces you will be mounting to. Key Slot screws and Locking Strips can be installed in several locations and left in place for quick removal and remounting when you return. In the field, the use of Locking Strips and Key Slots isn’t always an option. In such cases, the Adjustable Bungee Cord and Releasable Cable/Zip Ties are quick, efficient and easy methods of mounting. In short, different mounting methods may be better than others depending on location, environment and conditions.
Would I be better off upgrading a Standard Weaponholder or purchasing a Mil-Spec Weaponholder?
A Mil-Spec Weaponholder costs $40.00 more than a Standard Weaponholder. Purchased separately, the additional components included in the Mil-Spec Weaponholder would cost $79.93. Our Opinion is if you’re a first-time buyer the Mil-Spec Weaponholder is a terrific value. If you’re thinking of upgrading a few features on a Standard System that’s a good investment too.
Does having the Quick Release Tab on a side opposite my dominant hand slow the retrieval of my weapon?
No. The QR Strap’s design allows you to decide which side you want the QR Tab on. Once you decide, left or right, mount the bottom part of the strap through the strap slot on side you want the QR Tab to be on. Then mount the top part of the strap with the QR Tab on the opposite side of the Weaponholder.
Are the magnets in the Weaponholder strong enough to secure my weapon?
A magnetic connection will provide a holding force of approximately 25 lbs. It’s ok to use them against a vehicle or other metal object while staging, but they will not provide a secure connection as the can be easily disengaged by outside forces.
When I use the Clip on the Weaponholder will it scratch the barrel of my weapon?
No, the arms of the clip that secure the barrel have Silicone Clip Covers that prevent metal to metal contact. Be Aware the Silicone Covers on the Barrel Clip do need to be replaced from time to time. If you see they’re worn, replace them.
Can I put a hot barrel in the Weaponholder?
Yes. Both the V-O rated Sheaths and the Silicone Clip Covers can accommodate barrels with temperatures in excess of 480° F.
Can I use my Weaponholder for anything besides securing my weapon?
Yes. You can use the Weaponholder while zeroing your weapon in place of sand bags. The system can also secure your weapon during maintenance.
If I lose or break any part of the Weaponholder or Butt Plate, can I get a replacement part?
Yes, all System components are replaceable with one exception. The Magnets in the Weaponholder must be factory installed
Will I ever need to replace the strap?
Yes, depending on the number of open/close cycles your strap is subjected to, hook and loop will lose its strength over time. If you notice your strap’s peel strength is starting to weaken, we suggest you replace it to maintain maximum protection of your weapons. This is normal for all hook and loop products
What is the best way to mount the Barrel Clip onto the Weaponholder?
The Barrel Clip is attached to the Weaponholder using a combination of pressure fit and screw attachments which provide over 700 lbs. of holding force between the Weaponholder and the Barrel Clip. The pressure fit attachment should take under a minute to install.
Tip: Wet the overmold on the top of the Center Ridge prior to installation. Don’t be afraid to use too much water. All components are waterproof
Start the installation by placing one end of the clip on the overmolded surface of the Center Ridge. Push downward on the two metal arms facing the MPWH so that they are below the outer rails. Push the clip forward so that the arms slide under the rails.
Tip: Push the Clip forward by applying pressure to the portion of the clip with the Silicone covers. Rewet the overmold if necessary. As you push the clip forward the front set of arms will engage in the slots in the rails. Push the Clip Arms downward one at a time to disengage them from the Rail Slots
Tip: Pushing one side at a time during this process is easier. When the front arms of the Clip have been pushed past the first set of Rail Slots, push the rear arms downward so they are below the Rails. Continue to push the clip forward until all four arms are engaged in the Rail Slots. When the Clip Arms are engaged, the holes in the Clip should line up with the threaded Inserts in the Center Ridge. Using the Allen Wrench, install the Insert Screws found in the MPWH Accessory Kit. Do not over tighten the screws. Doing so may strip the threaded inserts making them unusable.
| Specification Sheet (PDF) | https://weaponholder.com/media/manuals/weaponholder/Mil-Spec_Tactical_Weaponholder_Specifications-OD_Green.pdf |
|---|---|
| Printable Instruction Sheet (PDF) | https://weaponholder.com/media/manuals/weaponholder/Printable_Instuction_Sheet.pdf |
| Color | OD Green 504 |
| Material | GF Nylon |
| Burn Rating | V-O |
| Temperature Rating | -58°F - +440°F |
| Weight: Weaponholder | 5.52 oz. |
| Dimensions: Weaponholder | L 2.697’ x W2.500” x H2.980” |
