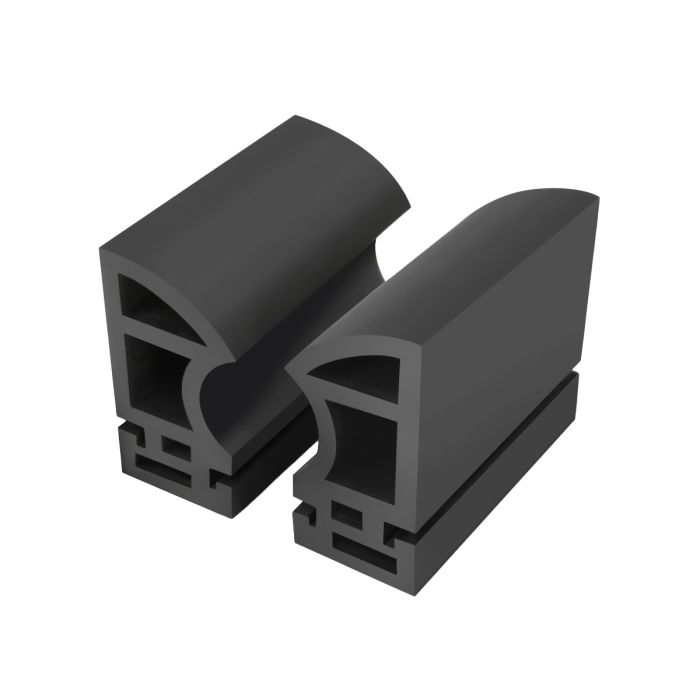

V-O burn rated sheaths offer one of the highest flammability ratings available and a functional operating temperature range that provides the highest performance in any climate, temperature or environment. The SHVO-75 design, durometer and texture provide easy barrel placement, security and removal.
SHVO-75 Sheaths are designed to accommodate weapons with barrel diameters of .750”and smaller. The Weaponholders track and rail design allows sheaths to be removed, exchanged or replaced in seconds. VO rated sheaths are designed to be visually recognizable from standard sheaths.
Printable Instruction Sheet (PDF) | Download |
---|
Material | Thermoplastic Elastomer |
Burn Rating | V-O Test Method UL 94 |
Dimensions OD | L - 2.000" x W - 0.891" x H - 1.625" |
Weight | 30.5 G |
Temperature Range | -58°F to +1760°F |
Color | Dark Gray - Matte |
Barrel Accommodation | .750" and smaller |
What diameter barrels can the Weaponholder secure when the Medium Sheaths are installed?
Medium Sheaths are designed to secure barrels .750”and smaller.
How do I remove or replace a sheath?
To Remove: slide the Sheath off the Rails in a direction away from the Locking Tab. To replace: line the Tracks in the Sheath up with the Rails on the Weaponholder and slide the Sheath onto the Rails from the end opposite the Locking Tabs. Make sure to slide the Sheath all the way onto the Rails until the Wedges on the Locking Tabs engage with the Sheath.
Tip: Using the strap will add at least 80 pounds of additional barrel securing strength to your system.
